The ZWO ASI462MM Mono is an ultra-sensitive black-and-white camera for planet, moon and solar photography, equipped with the Sony IMX462 sensor. With its excellent IR sensitivity, low readout noise and 136 fps at full resolution, this is a perfect camera for fast luminance shooting and stacking.
With a quantum efficiency of up to 89%, a minimum readout noise of 0.47 e- and a full well capacity of 11,200 e-, the ASI462MM offers an optimal signal-to-noise ratio. Ideal for those who want to extract maximum details from Jupiter, Saturn or moon craters - and also usable as a compact guiding camera.
Key features

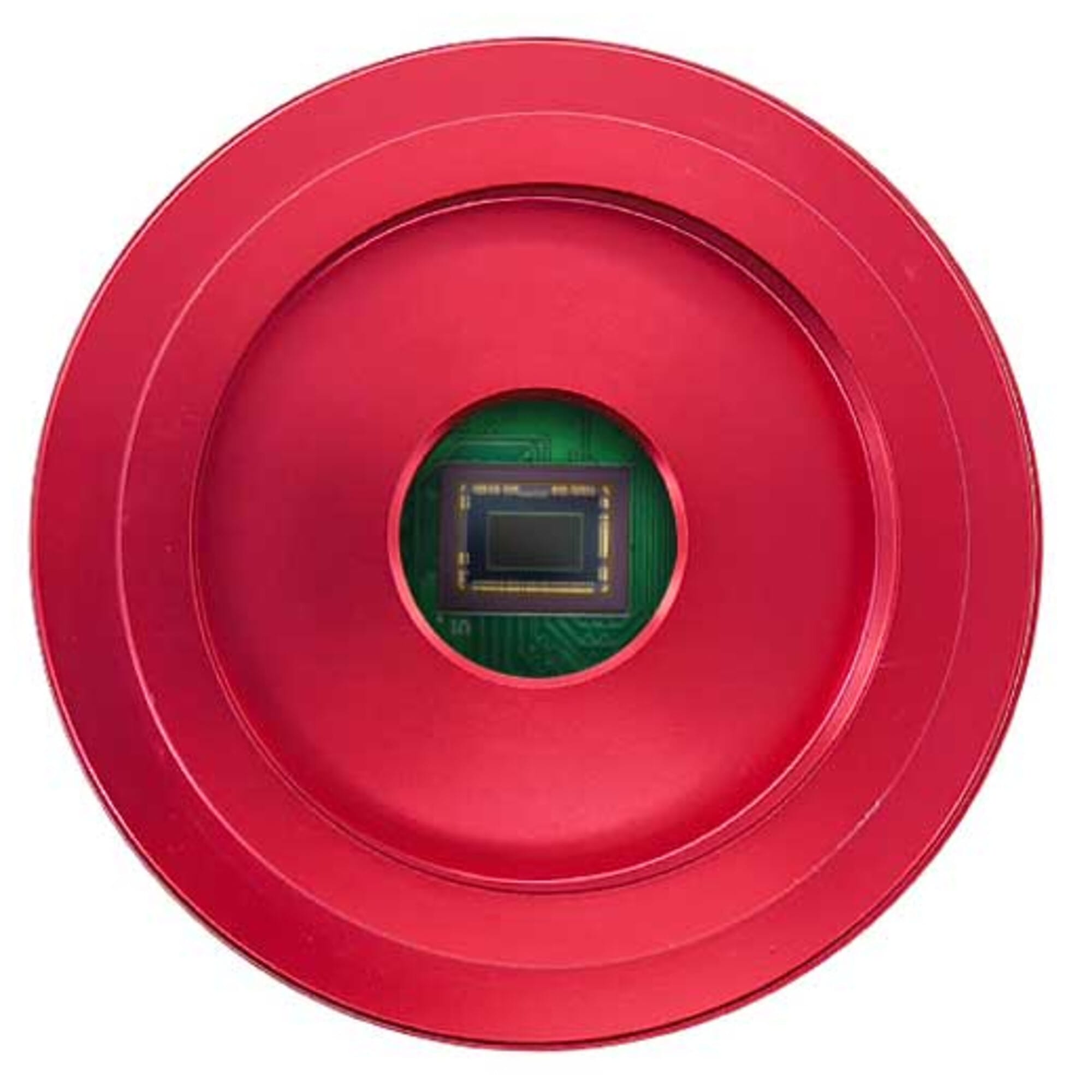

- Sony IMX462 sensor (2.1 MP) - 2.9 µm pixels, 1936 × 1096 resolution

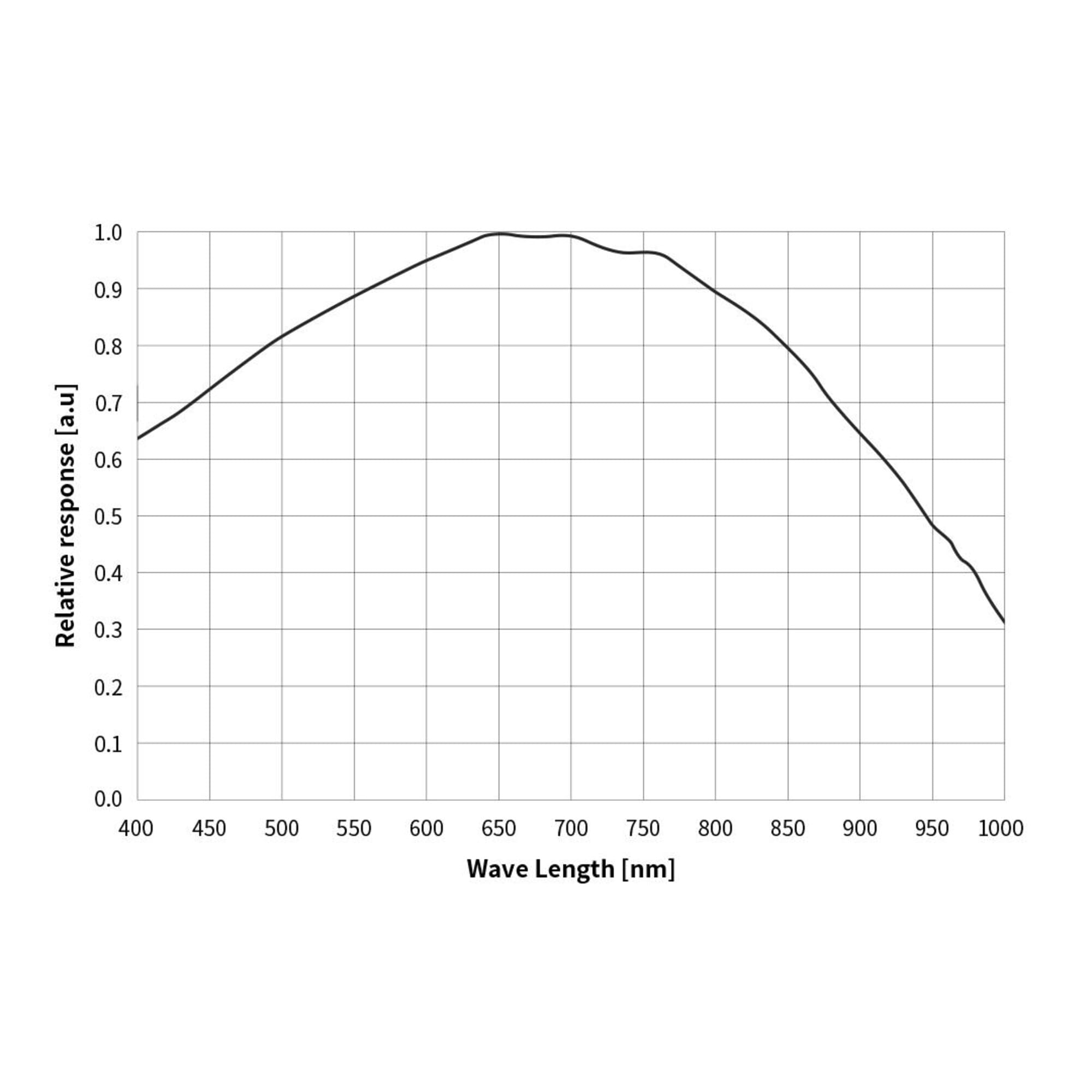

- QE to 89% - excellent IR sensitivity for infrared recordings
- Readout noise as low as 0.47 e-. - extremely low for sharp details
- Images per second - Up to 136 fps at full resolution
- No active cooling - compact, fast and immediately deployable
- ST-4 interface - usable as an autoguider
Applications
✓ Planets such as Jupiter, Saturn, Mars - fast IR luminance stacking
✓ Moon and sun shots with high detail (use solar filter!)
✓ Deep-sky stacking at low gain and short exposure
✓ Compact guiding camera for astrophotography setups

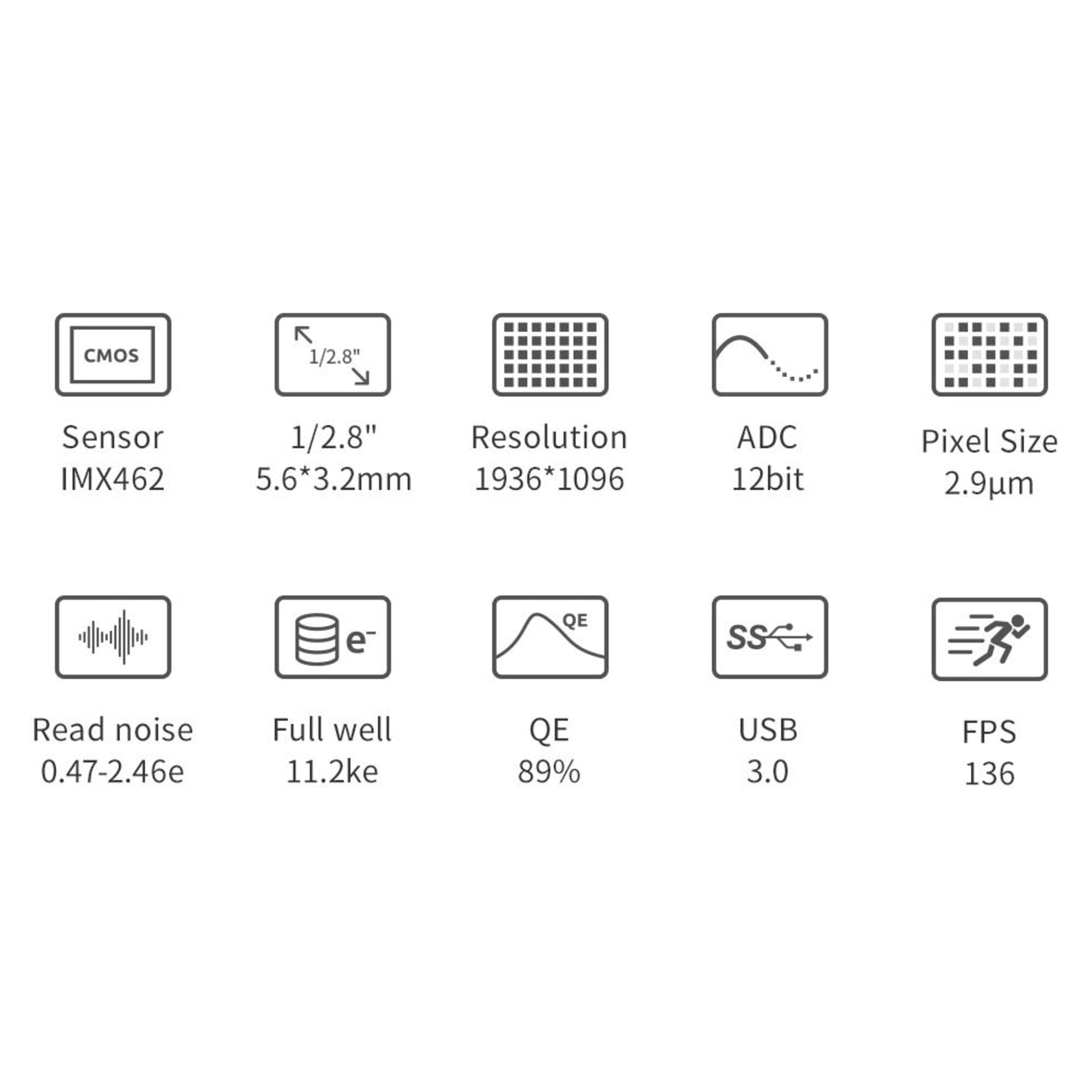

Specifications
| Feature | Value |
|---|---|
| Sensor | Sony IMX462 CMOS (Mono) |
| Resolution | 1936 × 1096 (2.1 MP) |
| Pixel size | 2.9 µm |
| Sensor format | 5.6 × 3.2 mm |
| Diagonal | 6.46 mm |
| Bit depth | 12-bit |
| Full Well Capacity | 11.200 e- |
| Reading Noise | 0,47 - 2,46 e- |
| FPS | 136 (at full resolution) |
| Interfaces | USB 3.0, ST-4 |
| Cooling | No |
| Telescope connection | T2, 1.25″ mount included |
| Weight | 110 g |
| Dimensions | Ø36 mm × 61 mm |
Additional info
✓ Rolling shutter technology
✓ Delivery includes adapter kit, USB 3.0 cable and ST4 cable
✓ Works with Windows, Mac and Linux
Note
Always use an appropriate solar filter for sun observations. IR photography does not require an IR-cut filter - though recommended for normal use.
