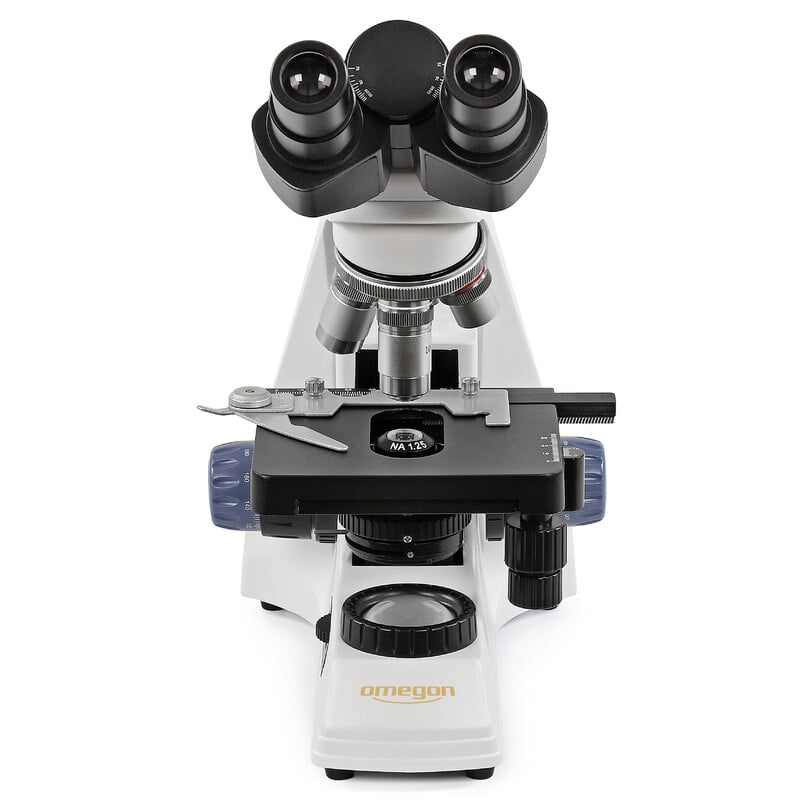

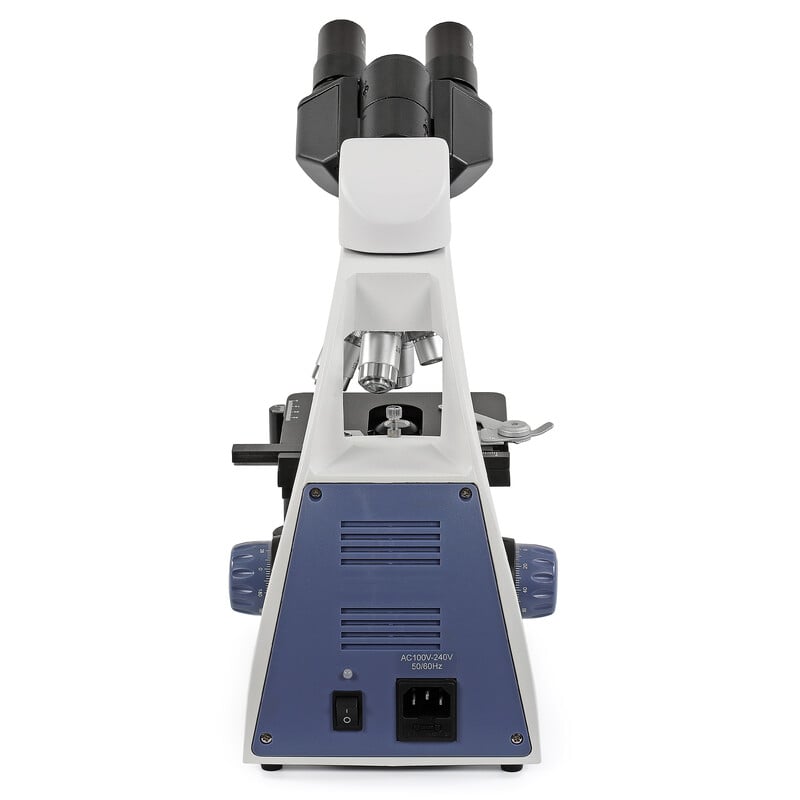

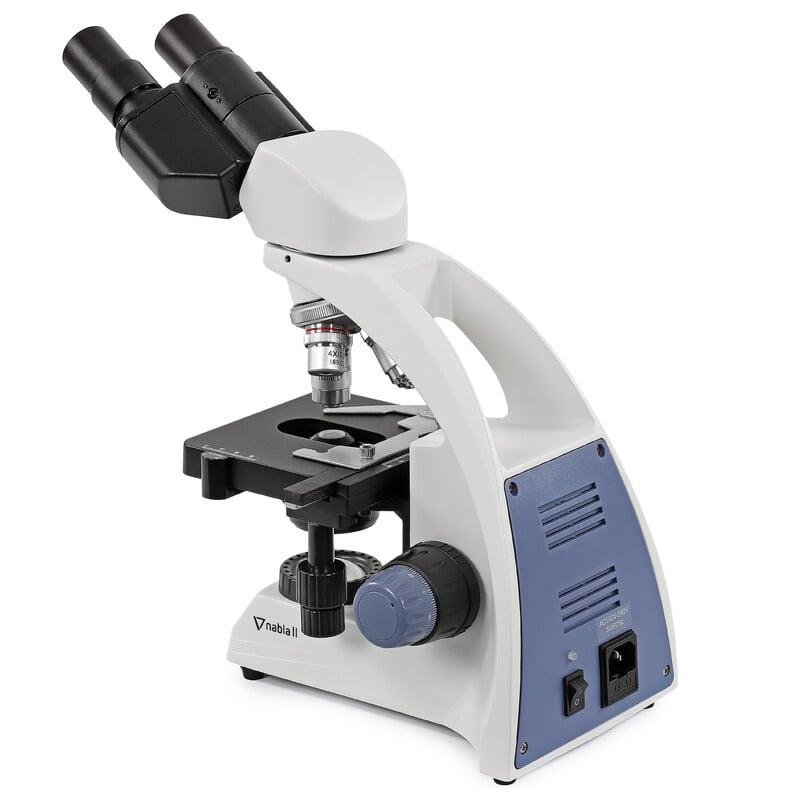

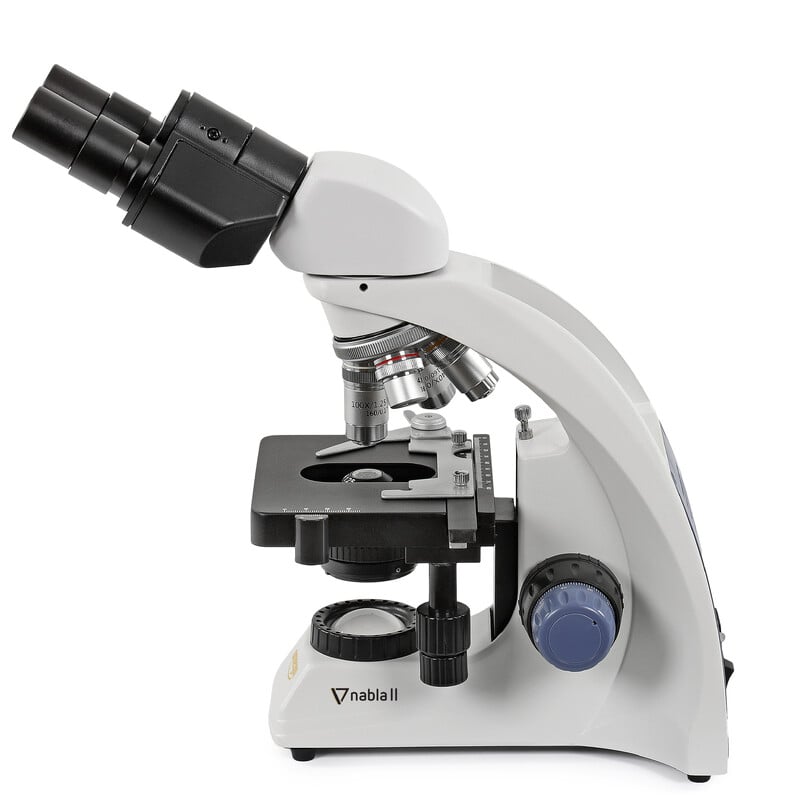

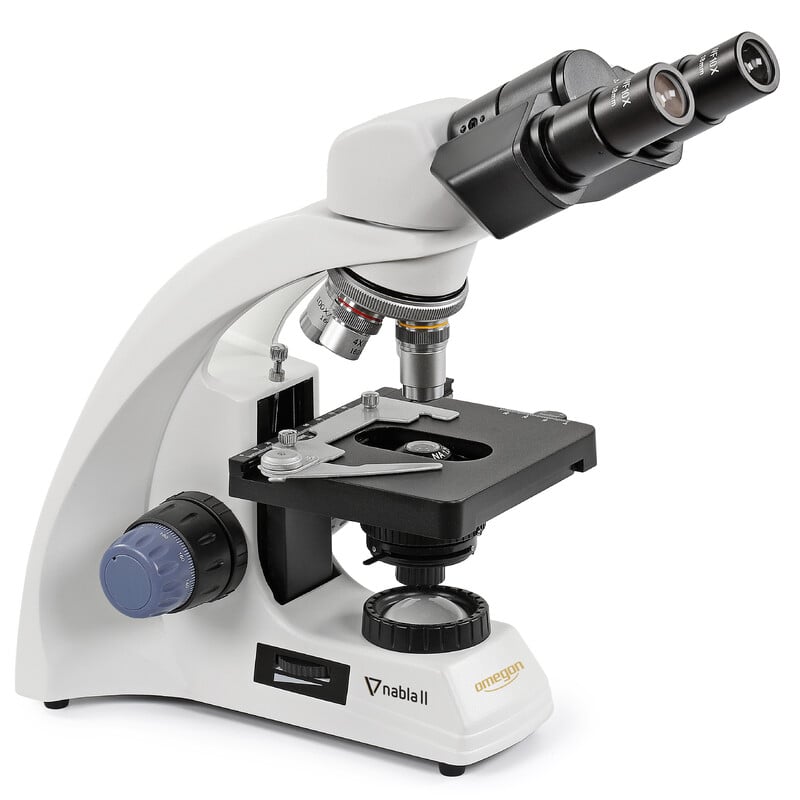

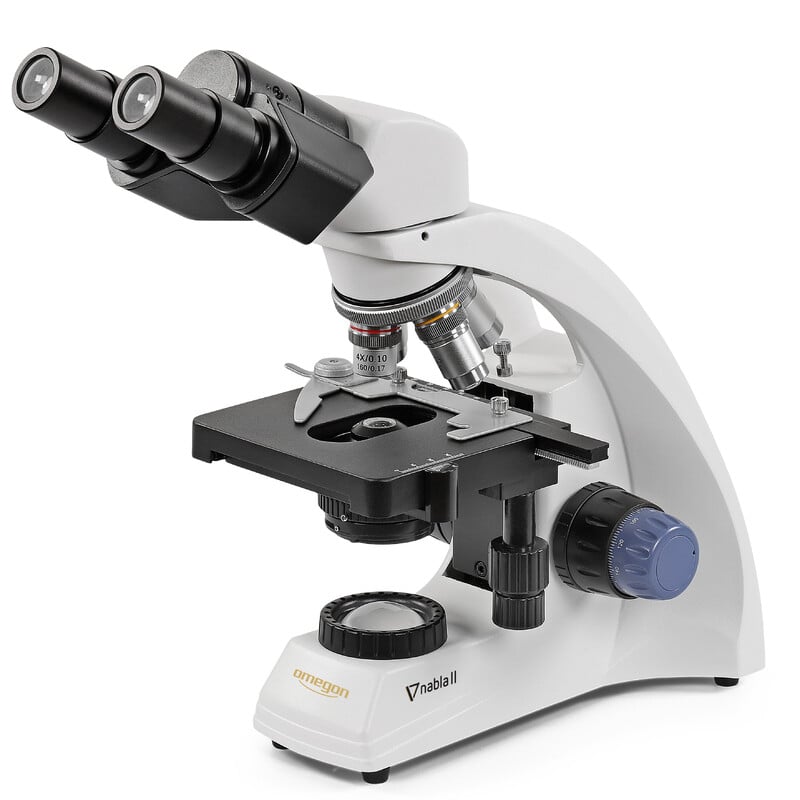

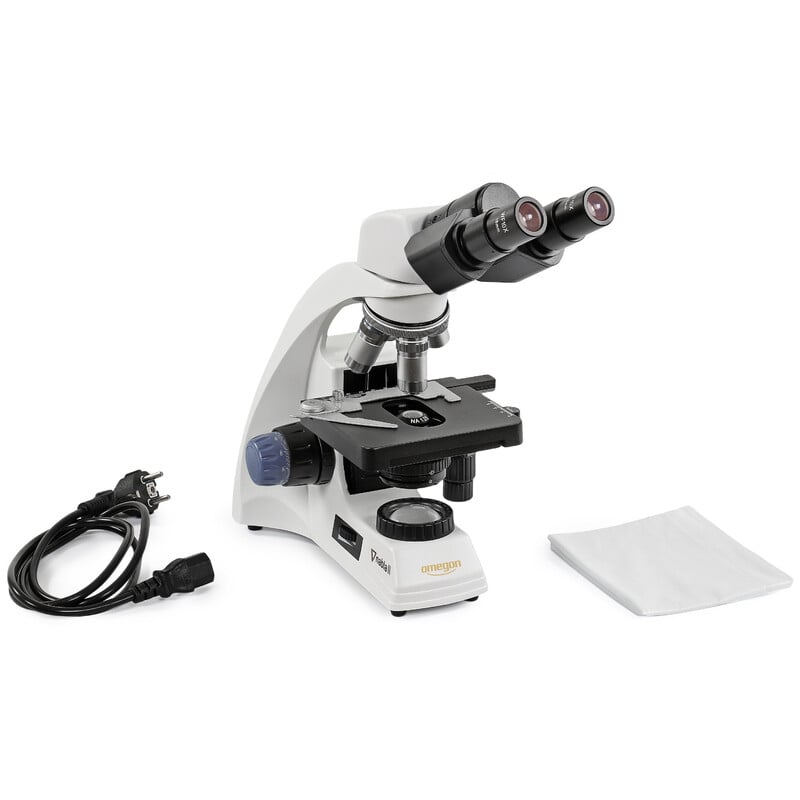

Omegon Microscope Nabla II Bino - Precise control so you really understand the microworld
The Omegon Microscope Nabla II Bino is made for those who want to see more than the surface. You will discover details that normally remain hidden. Clear. Quiet. Reliable. Perfect for teaching, hobby and serious research.
Magnify up to 1000× so nothing escapes you
With magnifications up to 1000×, you can clearly see cells, structures and microorganisms. Small differences become visible so you understand what you are looking at. Ideal for lessons, experiments and your own discoveries.
Sharp images that remain pleasing to your eyes
The high-quality optics provide a clear image with good contrast. Details remain sharp even at high magnification. That means longer viewing without eyestrain.
Uniform LED lighting for reliable results
The built-in LED illumination with Abbe condenser distributes light evenly over your specimen. So you see more details and fewer shadows. Especially important for precise observations.
Accurate focusing, right when it counts
With the coarse focus you find focus quickly. With the fine adjustment, you work down to the detail level. This gives control and peace of mind, especially at higher magnifications.
Stable cross table for controlled work
The robust cross-table with vernier scale lets you position the specimen precisely. You move the specimen smoothly, without touching it. That makes your observations more precise and consistent.
Comfortable viewing even in longer sessions
The binocular viewing head is tilted 30° and fully rotatable. You sit relaxed and natural, even when working longer. This makes working more pleasant and efficient.
Versatile, grows with you
Use the Nabla II in the classroom, at home or in field research. From plant cells to water samples. This microscope is suitable for beginners and advanced users who want reliable results.
What we recommend
✓ Education: very appropriate
✓ Hobby & research: excellent choice
✓ Beginners and advanced: ideal
✗ Highly specialized laboratory work: not intended
Specifications
Optics
| Feature | Description |
|---|---|
| Design | Binocular |
| Number of lenses | 4 |
| Objectives | 4×, 10×, 40×, 100× (oil, NA 1.25) |
| Ocular | 10× |
| Maximum magnification | 1000× |
| Immersion Lens | Yes |
| Condenser | Abbe condenser (NA 1.25) |
| Designed for deck glass | 0.17 mm |
Exposure
| Feature | Description |
|---|---|
| Type of lighting | Transmitted light |
| Light source | LED |
| Power | 3 W |
| Brightness control | Yes |
| Power supply | 220 V |
Mechanics
| Feature | Description |
|---|---|
| Focus | Coarse and fine adjustment |
| Cross table size | 125 × 115 mm |
| Revolver | 4 lenses |
| Insight | 30° tilted |
| Rotation head | 360° rotatable |
General
| Feature | Description |
|---|---|
| Series | Nabla II |
| Color | White |
| Weight | 4900 g |
| Dimensions | 320 × 260 × 410 mm |
| Suitable for beginners | Yes |
| Suitable for advanced users | Yes |
| Application | Biology, hobby, education |
| Use | Botany, naturalistics, middle and high school |
